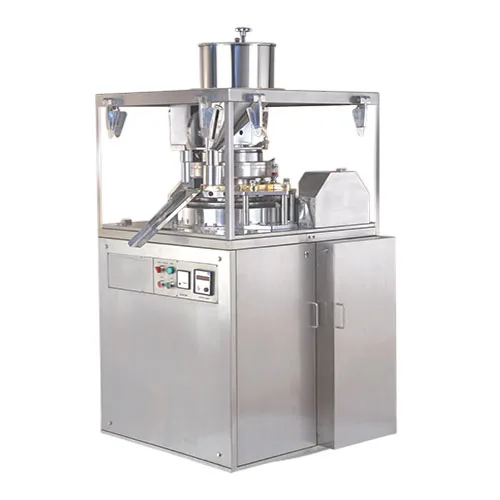

Single Rotary Tablet Press

Approx Price:

₹850,000.00

Total Ele. Power (hp): 3 HP
Electric Power Supply: 2.2 Kw, 1440 RPM, 415 V., 3 Phase, 50 Hz
Turret RPM Max: 40
Tablet Press Dimension: 980mm x 1020mm x 1820mm
Net Weight (kgs) (Approx.): 1000
Type of Tooling: D / DB / BB
No. of Station: 16 / 20 / 22 / 26

TECHNICAL SPECIFICATIONS
Model	JSKTP – 16 – D	JSKTP – 20 – D	JSKTP – 23 – DB	JSKTP – 26 – BB
Type of Tooling	“D”	“D”	“DB”	“BB”
No. of Station	16	20	23	26
Tablets Output /hour* (Max.)	38400	48000	55200	62400
Operating Pressure Max. (Ton)	10	10	10	6
Tablet Diameter Max. (mm)	25	25	16	11.1
Depth of Fill Max. (mm)	20.5	20.5	18,5	17.5
Upper Punch Penetration (mm)	1.5 – 8	1.5 – 8	1.5 – 8	1.5 – 8
Total Ele. Power (hp)	3 HP
Electric Power Supply	2.2 Kw, 1440 RPM, 415 V., 3 Phase, 50 Hz OR As Per the requirement of Customer
Turret RPM Max.	40
Tablet Press Dimension (mm) (Approx.)	980 x 1020 x 1820
Net Weight (kgs) (Approx.)	1000

Key Features of Single-Sided Rotary Tablet Press

GMP-Compliant Square Model: Designed to meet Good Manufacturing Practice (GMP) standards for superior hygiene and safety.
Robust SG Iron Body: Built with SG iron casted body and middle base for durability and stability.
Paint-Free Tablet Zone: Ensures a contamination-free environment for tablet manufacturing.
User-Friendly Material Feeding System: Excellent and operator-friendly feeding mechanism for smooth operation.
Stainless Steel Lower Guards: Polished stainless steel SS 304 lower guards for enhanced durability and easy cleaning.
Transparent Acrylic Upper Guards: High-visibility guards made from transparent acrylic material.
Advanced Tablet and RPM Counter: Equipped with electronic or digital counters for precise monitoring of tablets and RPM.
High-Quality Turret: Made from special-grade SG iron casting for exceptional performance.
Force-Feeding Attachment (Optional): Optional attachment for improved material feeding efficiency.
PLC with Color Touchscreen (Optional): Available with a PLC system and MMI touchscreen for advanced control and monitoring.
Lower Punch Wiper Seal: Prevents lower punch jamming and ensures smooth operation.
High Turret Speed: Operates at speeds ranging from 17 to 42 RPM for optimized productivity.
Upper Punch Penetration System: Ensures precise tablet compression with efficient upper punch penetration.
Guard Interlock Switches: Safety interlock switches provided for all guards to ensure operator safety.
Variable Speed Pulley: Allows flexible speed adjustment to suit various tablet manufacturing needs.
One-Shot Lubrication System: Simplifies maintenance by delivering efficient lubrication in a single shot.
Double-Sided Lifting Cams: Designed for enhanced tablet compression performance.
Anti-Vibration Mounts: Reduces vibrations for smooth and stable machine operation.
AC Variable Drive (Optional): Optional AC variable drive for improved control and performance.

Working Principle of a Tablet Press Machine

A tablet press machine is a critical piece of equipment used to produce tablets and pills from granulated powder, adhering to GMP standards for pharmaceutical manufacturing.

How a Tablet Press Works

Granulated Powder Compression:
The machine uses granulated powder, which is fed into a cavity formed by a die and two punches (upper and lower). The punches apply force to compress the powder, fusing it into a solid tablet.
Hydraulic Pressure Principle:
The tablet press operates using hydraulic pressure, which plays a vital role in the compression process. This pressure is transmitted uniformly through static fluid, ensuring consistent force is applied in all directions, resulting in precise tablet formation.
Rotary Tablet Press Mechanism:
Rotary tablet presses consist of multiple stations that rotate continuously. Each station compresses the powder into tablets, making this type of machine highly efficient for mass production.
Types of Tablet Press Machines:
- Single-Station Tablet Press: Ideal for small-scale production, these machines work with one cavity at a time and are suitable for low-volume needs.
- Multi-Station (Rotary) Tablet Press: Designed for high-speed, large-scale production, these machines feature multiple rotating stations, enabling simultaneous compression of multiple tablets.
