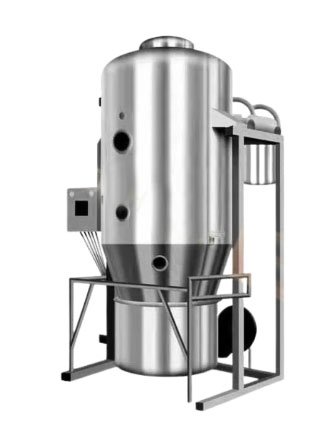

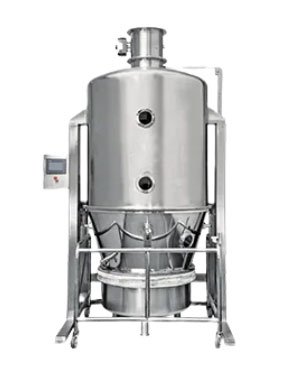

Fluid Bed Dryer

Technical Specification of Fluid Bed Dryer:
Model	JSKFBD1	JSKFBD5	JSKFBD10	JSKFBD30	JSKFBD60	JSKFBD120	JSKFBD200	JSKFBD250	JSKFBD300	JSKFBD500
Working Capacity (Kgs.)	1	5	10	30	60	120	200	250	300	500
Blower Motor HP	2	3	3	5	15	20	25	30	40	60
CFM	500	700	700	1200	2600	3500	4500	5500	7500	9000
Steam Consumption kg/hr	NA	NA	15	25	50	120	175	200	250	400
Heaters (KW)	3	3	6	18	36	54	Steam	Steam	Steam	Steam

Fluidization occurs when air or gas is introduced at a high enough velocity to lift and suspend solid particles. When the airflow velocity exceeds the particle’s settling velocity, the particles become suspended, creating a fluid-like state. In this state, the heat and mass transfer between the particles and air are maximized, leading to rapid and uniform drying.

Fluidized Bed Dryers are versatile machines with a wide range of applications across industries. Their ability to provide consistent drying, energy efficiency, and scalability makes them a preferred choice for processes involving granules, powders, and other materials. As industries evolve and demand more precise and efficient drying methods, FBDs continue to play a pivotal role in meeting these requirements.

Working Principle of Fluid Bed Dryer

A Fluid Bed Dryer (FBD) operates on the principle of fluidization, which is the process of making a solid behave like a fluid by passing a gas or air through it. This efficient drying mechanism is widely used in industries such as pharmaceuticals, chemicals, food, and agriculture for drying powders, granules, and small-sized materials. Below is a detailed explanation of its working principle:

Step-by-Step Working Principle of Fluid Bed Dryer

• Airflow Generation: The process begins with a blower or fan generating a continuous flow of hot air or gas. The air is heated using a heating element, such as an electric heater, gas burner, or steam-based heat exchanger, depending on the dryer design.
• Air Distribution: The hot air passes through a perforated or mesh bed, often referred to as the distributor plate. This plate ensures uniform distribution of air across the drying chamber, preventing uneven fluidization.
• Particle Fluidization: The solid material (granules or powders) to be dried is placed on the distributor plate. As the hot air flows through the bed, the particles are lifted and suspended in the air stream. The particles move freely, creating a fluidized state where each particle is surrounded by hot air.
• Heat Transfer: In the fluidized state, the hot air transfers heat to the moisture-laden particles through convection. The moisture inside the particles evaporates due to the applied heat, increasing the drying rate significantly.
• Moisture Removal: The evaporated moisture is carried away by the airflow and exits the drying chamber through an exhaust system. Filters or separators may be installed to capture fine particles, preventing them from escaping with the exhaust air.
• Continuous Monitoring: Temperature and airflow velocity are monitored and controlled to ensure optimal drying conditions. The process continues until the desired moisture content is achieved.

Applications of Fluidized Bed Dryers (FBD)

Fluidized Bed Dryers (FBD) are essential equipment in various industries for drying powders, granules, and other solid materials. Their unique design and efficient drying process make them a popular choice for applications requiring uniform drying and controlled temperature conditions. Below are the key applications of Fluidized Bed Dryers across various sectors:

Pharmaceutical Industry

The pharmaceutical industry is one of the largest users of fluidized bed dryers due to its stringent requirements for product consistency and quality. Key applications include:

• Drying of Granules and Powders: FBDs are used to dry granulated materials before tablet compression. This ensures optimal moisture content, which is critical for tablet hardness and disintegration.
• Active Pharmaceutical Ingredients (APIs): Drying APIs to a specific moisture level to maintain their potency and stability.
• Coating Processes: In some cases, fluidized bed dryers can also be adapted for processes like granulation or coating of particles, improving drug delivery.

Food and Beverage Industry

In the food sector, maintaining the taste, texture, and nutritional value of products is crucial. FBDs are employed for:

• Drying Cereals and Grains: Fluidized bed dryers ensure even drying without compromising the quality of grains like wheat, rice, and corn.
• Dehydration of Fruits and Vegetables: FBDs are used to produce dried fruits, vegetable powders, and snacks while retaining natural colors and flavors.
• Powdered Food Products: Drying powdered products like milk powder, protein powders, and instant drink mixes to maintain flowability and shelf life.

Chemical Industry

The chemical industry benefits from the precise temperature control and energy efficiency of fluidized bed dryers for:

• Drying Fine Chemicals and Intermediates: Ensuring stable and uniform drying of sensitive materials used in chemical synthesis.
• Catalyst Drying: FBDs are ideal for drying catalyst particles, maintaining their surface area and reactivity.
• Detergent Powders: Producing consistent and free-flowing detergent powders for household and industrial use.

Cosmetic Industry

The cosmetic industry requires high-quality powders and granules for its products. FBDs are employed for:

• Drying Cosmetic Powders: Ensuring consistent particle size and flow properties for products like face powders and compact powders.
• Processing Ingredients: Drying raw materials like talc, mica, and other minerals used in cosmetics.

Agriculture and Fertilizer Industry

FBDs are widely used in agriculture for processing fertilizers and animal feed:

• Drying Fertilizer Granules: Ensuring uniform drying of granules for better storage and application.
• Animal Feed Processing: Drying feed products to achieve desired moisture levels and extend shelf life.

Powder Metallurgy

In powder metallurgy, FBDs play a crucial role in preparing metal powders:

• Drying Metal Powders: Used in applications such as additive manufacturing and metal injection molding.
• Removal of Volatiles: Efficiently drying and removing volatile impurities from metal powders.

Paints, Pigments, and Dyes

In the paints and dyes industry, drying uniformity and particle quality are critical:

• Drying Pigments and Dyes: Producing stable and vibrant pigments for industrial and artistic use.
• Powder Coating Materials: Drying the base materials used in powder coating applications.

Energy Sector

The energy sector uses FBDs for specialized applications:

• Drying Biofuels: Drying biofuel feedstock like wood chips, sawdust, and agricultural residues.
• Coal Drying: Preparing coal for power generation by reducing moisture content efficiently.

Environmental Applications

FBDs contribute to sustainable practices and environmental management:

• Sludge Drying: Reducing the moisture content of industrial and municipal sludge, making it easier to handle and dispose of.
• Waste Recycling: Drying materials in recycling processes to produce reusable products.

Features of Fluidized Bed Dryer (FBD)

Fluidized Bed Dryers (FBD) are highly efficient and versatile machines widely used in industries like pharmaceuticals, food, chemicals, and more. Their advanced design and superior performance make them an essential choice for drying granules, powders, and other solid materials. Below, we outline the key features of a Fluid Bed Dryer that contribute to its effectiveness and popularity.

Uniform Drying

The fluidized bed dryer operates by creating a fluidized state, where hot air flows through the product bed, suspending and evenly distributing the particles. This ensures Consistent drying of all particles. Prevention of hot spots or over-drying. Superior product quality with uniform moisture content.

High Thermal Efficiency

FBDs are designed to maximize energy usage, making them highly efficient. Optimized heat transfer ensures fast drying cycles. Reduced energy consumption compared to traditional drying methods. Enhanced productivity with minimal heat loss.

Precise Temperature Control

With advanced control systems, FBDs offer precise monitoring and adjustment of drying temperatures. Digital or PLC-based temperature control systems ensure accuracy. Tailored temperature profiles for sensitive materials. Protection of heat-sensitive products like pharmaceuticals or food ingredients.

Scalability and Customization

Fluid bed dryers come in various sizes and can be customized to suit specific industrial needs. Available in laboratory models for R&D purposes and larger models for production-scale operations. Options for batch and continuous processing to match production requirements. Customizable designs to accommodate specific materials and moisture removal rates.

Ease of Operation

Modern fluidized bed dryers are equipped with user-friendly features for effortless operation. Intuitive control panels for quick parameter adjustments. Automatic safety features like temperature alarms and emergency shutdown systems. Minimal operator intervention required during the drying process.

Compact Design

FBDs are designed to save space while delivering maximum efficiency. Compact footprints make them ideal for industries with limited floor space. Ergonomic designs ensure easy installation and maintenance.

Quick Drying Time

The fluidization process ensures rapid drying by increasing surface area contact between hot air and the material. Significantly reduced drying time compared to conventional methods. Enhanced production efficiency, especially in high-demand environments.

Dust Collection System

Integrated dust collection mechanisms prevent product loss and maintain a clean environment. Effective separation of fine particles from the exhaust air. Improved material yield and reduced waste. Enhanced workplace safety and compliance with environmental regulations.

Hygienic Design

Fluidized bed dryers are built with hygiene as a top priority, particularly for industries like pharmaceuticals and food. Stainless steel construction for easy cleaning and corrosion resistance. Smooth surfaces and minimal dead zones to prevent product buildup. Compliance with GMP (Good Manufacturing Practice) standards.

Low Maintenance Requirements

The robust construction and advanced engineering of FBDs ensure durability and minimal upkeep. Long service life due to high-quality materials and components. Easy access to internal parts for routine inspection and cleaning. Reduced downtime, improving overall productivity.

Energy Efficiency Features

To minimize operational costs, FBDs incorporate energy-saving mechanisms. Recycled air systems to reduce energy waste. Advanced insulation to retain heat within the drying chamber. Variable speed fans for optimal airflow control.

Safety Features

Safety is a critical consideration in the design of fluid bed dryers. Overheating protection to prevent material degradation or machine damage. Explosion-proof designs for handling volatile or flammable materials. Real-time monitoring systems to detect and resolve issues promptly.

Versatility in Application

Fluidized bed dryers can handle a wide range of materials and processes. Suitable for drying powders, granules, pellets, and crystalline materials. Can be adapted for additional processes like coating or granulation. Effective for both heat-sensitive and robust materials.

Environmentally Friendly Operation

FBDs contribute to sustainable practices with their eco-friendly features. Reduced emissions through advanced filtration systems. Minimal energy waste, lowering the carbon footprint. Cleaner drying processes, ensuring safe disposal of by-products.
